SAEL-01 · Astria Porta — the Spatial AI Embodiment Layer.
Vessel 2 is where the ecosystem leaves the screen. The Hologram Core is a desktop-scale volumetric projector that renders a persona inside a near-invisible optical chamber using a dual light-field array and Pepper's Ghost optics. It is not a display accessory. It is an embodiment layer — the physical terminus of the same intelligence spine that runs MioS, Mika, and every module above it.
"Not just a device. A portal to your AI universe."

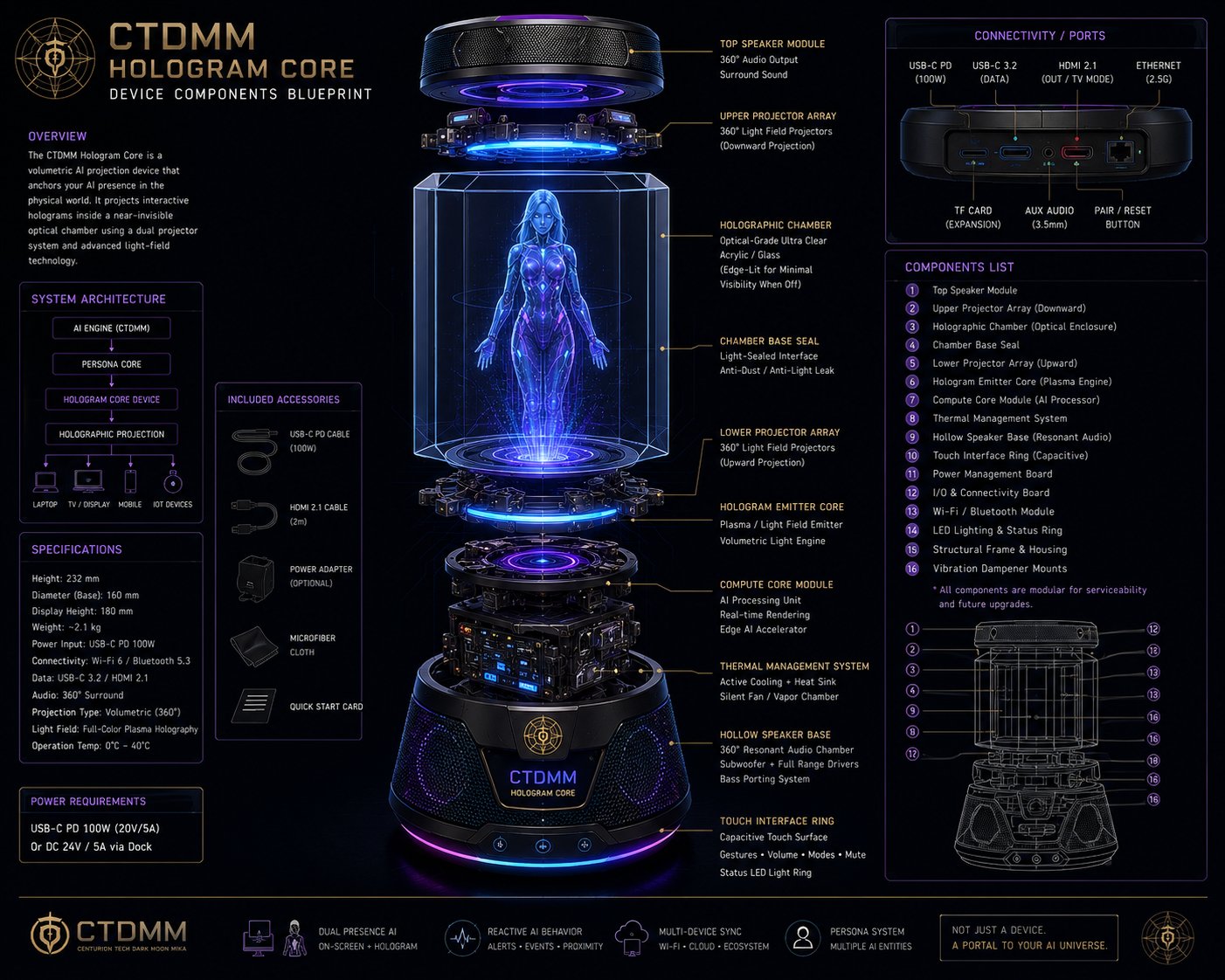

The CTDMM Hologram Core is a volumetric AI projection device that anchors your AI presence in the physical world. It projects interactive holograms inside a near-invisible optical chamber using a dual projector system and advanced light-field technology.
| # | Component | Function |
|---|---|---|
| 01 | Top Speaker Module | 360° audio output, surround sound |
| 02 | Upper Projector Array | 360° light-field projectors, downward projection |
| 03 | Holographic Chamber | Optical-grade ultra-clear acrylic / glass, edge-lit |
| 04 | Chamber Base Seal | Light-sealed interface, anti-dust / anti-light-leak |
| 05 | Lower Projector Array | 360° light-field projectors, upward projection |
| 06 | Hologram Emitter Core | Plasma / light-field emitter, volumetric light engine |
| 07 | Compute Core Module | AI processing unit, real-time rendering, edge accelerator |
| 08 | Thermal Management | Active cooling + heat sink, silent fan / vapor chamber |
| 09 | Hollow Speaker Base | 360° resonant audio chamber, subwoofer + full range |
| 10 | Touch Interface Ring | Capacitive surface — gestures, volume, modes, mute |
| 11 | Power Management Board | USB-C PD 100W input regulation |
| 12 | I/O & Connectivity Board | USB-C 3.2, HDMI 2.1, Ethernet 2.5G |
| 13 | Wi-Fi / Bluetooth Module | Wi-Fi 6 · Bluetooth 5.3 |
| 14 | LED Lighting & Status Ring | Presence, state, and alert signalling |
| 15 | Structural Frame & Housing | Load-bearing chassis |
| 16 | Vibration Dampener Mounts | Acoustic isolation for the emitter stack |
| Spec | Value |
|---|---|
| Height | 232 mm |
| Diameter (base) | 160 mm |
| Display height | 180 mm |
| Weight | 1.8 – 2.1 kg |
| Power input | USB-C PD 100W (20V/5A) or DC 24V / 5A via dock |
| Connectivity | Wi-Fi 6 · Bluetooth 5.3 |
| Data | USB-C 3.2 · HDMI 2.1 |
| Audio | 360° surround |
| Projection type | Volumetric (360°) |
| Light field | Full-colour plasma holography |
| Resolution | 4K holographic |
| Compute | AI NPU / GPU — edge AI, offline mode |
| Operating temp | 0°C – 40°C |

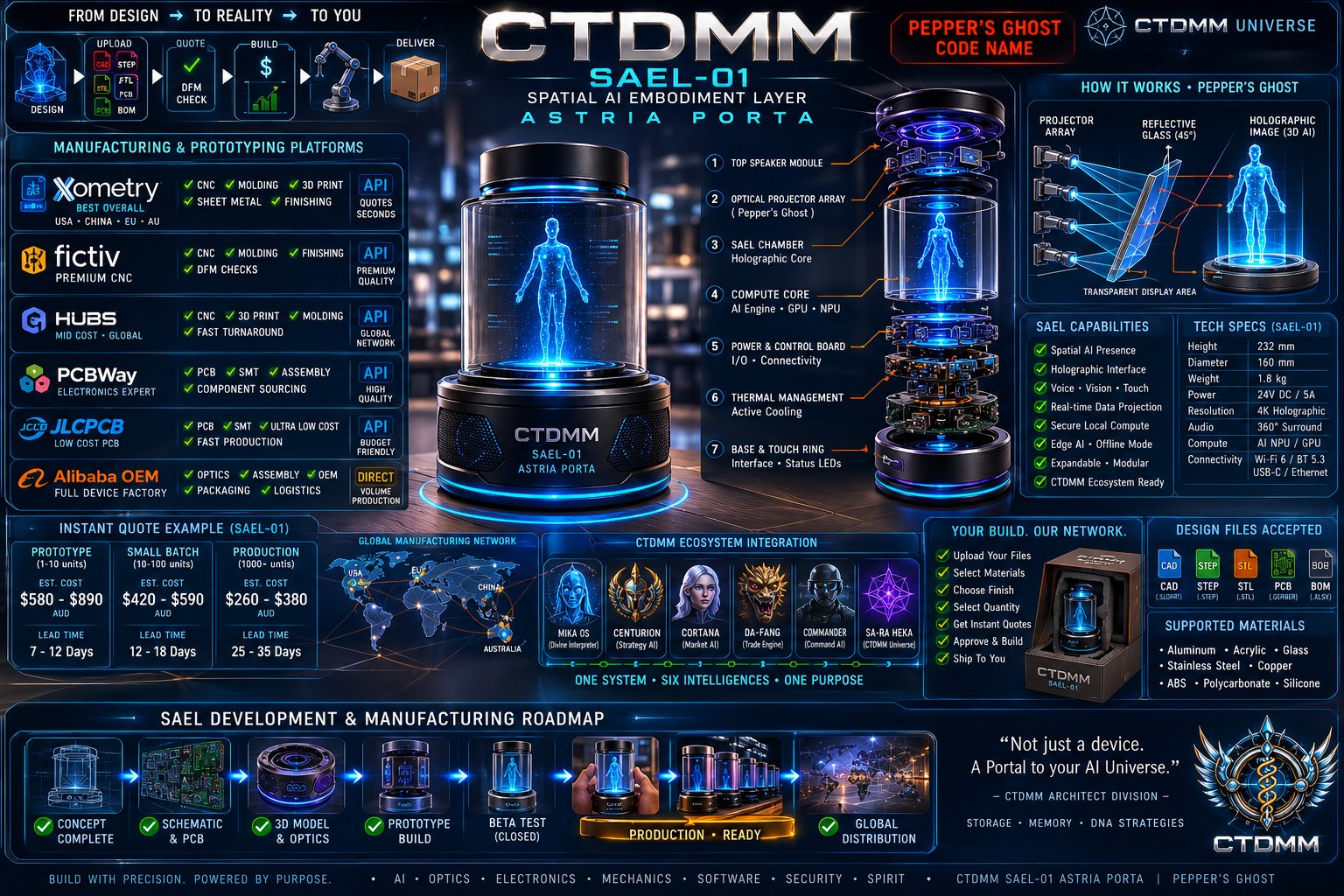

SAEL-01 uses a Pepper's Ghost optical path: a projector array fires into reflective glass angled at 45°, producing a free-floating 3D image inside the transparent display area. The result is a persona with real spatial position — one you address rather than operate.
| Platform | Capability | Position |
|---|---|---|
| Xometry | CNC · molding · 3D print · sheet metal · finishing | Best overall — quotes in seconds |
| Fictiv | CNC · molding · finishing · DFM checks | Premium quality |
| Hubs | CNC · 3D print · molding | Mid cost, global network |
| PCBWay | PCB · SMT · assembly · component sourcing | High quality electronics |
| JLCPCB | PCB · SMT · ultra low cost | Budget PCB production |
| Alibaba OEM | Optics · assembly · OEM · packaging · logistics | Full device factory, volume |
| Tier | Units | Est. cost / unit | Lead time |
|---|---|---|---|
| Prototype | 1 – 10 | $580 – $890 | 7 – 12 days |
| Small batch | 10 – 100 | $420 – $590 | 12 – 18 days |
| Production | 1000+ | $260 – $380 | 25 – 35 days |
One system, six intelligences, one purpose. The vessel hosts the full CTDMM persona set locally and routes deeper work back up the spine to MioS.
| Intelligence | Role in the vessel |
|---|---|
| Mika OS | Divine interpreter — the resident presence |
| Centurion | Strategy AI — tactical and defensive reasoning |
| Cortana | Market AI — chart and analysis surface |
| Da-Fang | Trade engine — execution logic |
| Commander | Command AI — orchestration and sequencing |
| Sa-Ra Heka | CTDMM Universe — lineage and mythic layer |
